SUN-5249P (EX-3220) Hard Disk/Floppy Controller Settings and Configuration

Data Bus	32-bit PCI
Card Size	Three-quarter length, full-height card
Hard Drives supported	Four IDE (AT) drives
Floppy drives supported	Two 360KB, 720KB, 1.2MB, 1.44MB or 2.88 MB drives

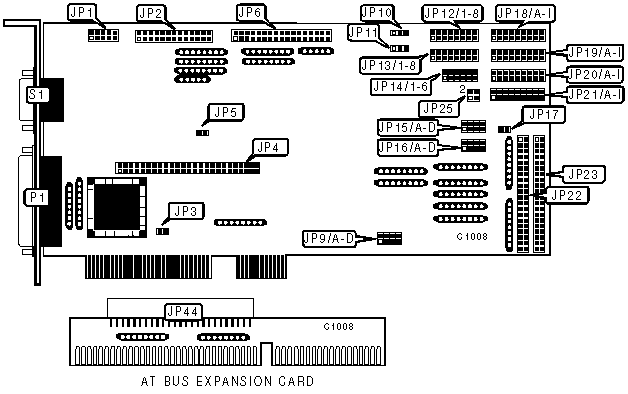

CONNECTIONS
Function	Location	Function	Location
10-pin serial port 2 - internal	JP1	40-pin IDE(AT) secondary connector	JP22
26-pin parallel port 2 - internal	JP2	40-pin IDE(AT) primary connector	JP23
Proprietary expansion card connector	JP4	25-pin parallel port 1 - external	P1
2-pin connector - drive active LED	JP5	9-pin serial port 1 - external	S1
34-pin cable connector - floppy drive	JP6	Proprietary expansion card connector	JP44
2-pin connector - drive active LED	JP17

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Floppy drive primary address select	JP10	Pins 1 & 2 closed
	Floppy drive secondary address select	JP10	Pins 3 & 4 closed
»	Floppy drive interface enabled	JP11	Pins 1 & 2 closed
	Floppy drive interface disabled	JP11	Pins 2 & 3 closed
»	Factory configured - do not alter	JP3	Open
»	Factory configured - do not alter	JP9/A	Open
»	Factory configured - do not alter	JP9/B	Closed
»	Factory configured - do not alter	JP9/C	Open
»	Factory configured - do not alter	JP9/D	Open

SERIAL PORT 1 ADDRESS SELECTION
COM		JP12/1	JP12/2	JP12/3	JP12/4	JP12/5	JP12/6	JP12/7	JP12/8
»	COM1(3F8h)	Closed	Open	Open	Open	Open	Open	Open	Open
	COM2(2F8h)	Open	Closed	Open	Open	Open	Open	Open	Open
	COM3(3E8h)	Open	Open	Closed	Open	Open	Open	Open	Open
	COM4(2E8h)	Open	Open	Open	Closed	Open	Open	Open	Open
	COM5(3F0h)	Open	Open	Open	Open	Closed	Open	Open	Open
	COM6(3E0h)	Open	Open	Open	Open	Open	Closed	Open	Open
	COM7(2E0h)	Open	Open	Open	Open	Open	Open	Closed	Open
	COM8(260h)	Open	Open	Open	Open	Open	Open	Open	Closed

SERIAL PORT 2 ADDRESS SELECTION
COM		JP13/1	JP13/2	JP13/3	JP13/4	JP13/5	JP13/6	JP13/7	JP13/8
	COM1(3F8h)	Closed	Open	Open	Open	Open	Open	Open	Open
»	COM2(2F8h)	Open	Closed	Open	Open	Open	Open	Open	Open
	COM3(3E8h)	Open	Open	Closed	Open	Open	Open	Open	Open
	COM4(2E8h)	Open	Open	Open	Closed	Open	Open	Open	Open
	COM5(3F0h)	Open	Open	Open	Open	Closed	Open	Open	Open
	COM6(3E0h)	Open	Open	Open	Open	Open	Closed	Open	Open
	COM7(2E0h)	Open	Open	Open	Open	Open	Open	Closed	Open
	COM8(260h)	Open	Open	Open	Open	Open	Open	Open	Closed

PARALLEL PORT 1 ADDRESS SELECTION
LPT		JP14/1	JP14/2	JP14/3	JP14/4	JP14/5	JP14/6
»	LPT1(3BCh)	Closed	Open	Open	Open	Open	Open
	LPT2(378h)	Open	Closed	Open	Open	Open	Open
	LPT3(278h)	Open	Open	Closed	Open	Open	Open
	LPT4(268h)	Open	Open	Open	Closed	Open	Open
	LPT5(27Ch)	Open	Open	Open	Open	Closed	Open
	LPT6(26Ch)	Open	Open	Open	Open	Open	Closed

PARALLEL PORT 2 ADDRESS SELECTION
LPT		JP25/pins 1 & 2	JP25/pins 3 & 4
	LPT2(378h)	Closed	Open
»	LPT3(278h)	Open	Closed

SERIAL PORT 1 INTERRUPT SELECTION
IRQ		JP18/A	JP18/B	JP18/C	JP18/D	JP18/E	JP18/F	JP18/G	JP18/H	JP18/I
	IRQ3	Closed	Open	Open	Open	Open	Open	Open	Open	Open
»	IRQ4	Open	Closed	Open	Open	Open	Open	Open	Open	Open
	IRQ5	Open	Open	Closed	Open	Open	Open	Open	Open	Open
	IRQ7	Open	Open	Open	Closed	Open	Open	Open	Open	Open
	IRQ9	Open	Open	Open	Open	Closed	Open	Open	Open	Open
	IRQ10	Open	Open	Open	Open	Open	Closed	Open	Open	Open
	IRQ11	Open	Open	Open	Open	Open	Open	Closed	Open	Open
	IRQ12	Open	Open	Open	Open	Open	Open	Open	Closed	Open
	IRQ15	Open	Open	Open	Open	Open	Open	Open	Open	Closed

SERIAL PORT 2 INTERRUPT SELECTION
IRQ		JP19/A	JP19/B	JP19/C	JP19/D	JP19/E	JP19/F	JP19/G	JP19/H	JP19/I
»	IRQ3	Closed	Open	Open	Open	Open	Open	Open	Open	Open
	IRQ4	Open	Closed	Open	Open	Open	Open	Open	Open	Open
	IRQ5	Open	Open	Closed	Open	Open	Open	Open	Open	Open
	IRQ7	Open	Open	Open	Closed	Open	Open	Open	Open	Open
	IRQ9	Open	Open	Open	Open	Closed	Open	Open	Open	Open
	IRQ10	Open	Open	Open	Open	Open	Closed	Open	Open	Open
	IRQ11	Open	Open	Open	Open	Open	Open	Closed	Open	Open
	IRQ12	Open	Open	Open	Open	Open	Open	Open	Closed	Open
	IRQ15	Open	Open	Open	Open	Open	Open	Open	Open	Closed

PARALLEL PORT 1 INTERRUPT SELECTION
IRQ		JP20/A	JP20/B	JP20/C	JP20/D	JP20/E	JP20/F	JP20/G	JP20/H	JP20/I
	IRQ3	Closed	Open	Open	Open	Open	Open	Open	Open	Open
	IRQ4	Open	Closed	Open	Open	Open	Open	Open	Open	Open
	IRQ5	Open	Open	Closed	Open	Open	Open	Open	Open	Open
»	IRQ7	Open	Open	Open	Closed	Open	Open	Open	Open	Open
	IRQ9	Open	Open	Open	Open	Closed	Open	Open	Open	Open
	IRQ10	Open	Open	Open	Open	Open	Closed	Open	Open	Open
	IRQ11	Open	Open	Open	Open	Open	Open	Closed	Open	Open
	IRQ12	Open	Open	Open	Open	Open	Open	Open	Closed	Open
	IRQ15	Open	Open	Open	Open	Open	Open	Open	Open	Closed

PARALLEL PORT 2 INTERRUPT SELECTION
IRQ		J21/A	J21/B	J21/C	J21/D	J21/E	J21/F	J21/G	J21/H	J21/I
	IRQ3	Closed	Open	Open	Open	Open	Open	Open	Open	Open
	IRQ4	Open	Closed	Open	Open	Open	Open	Open	Open	Open
»	IRQ5	Open	Open	Closed	Open	Open	Open	Open	Open	Open
	IRQ7	Open	Open	Open	Closed	Open	Open	Open	Open	Open
	IRQ9	Open	Open	Open	Open	Closed	Open	Open	Open	Open
	IRQ10	Open	Open	Open	Open	Open	Closed	Open	Open	Open
	IRQ11	Open	Open	Open	Open	Open	Open	Closed	Open	Open
	IRQ12	Open	Open	Open	Open	Open	Open	Open	Closed	Open
	IRQ15	Open	Open	Open	Open	Open	Open	Open	Open	Closed

PRIMARY IDE INTERRUPT SELECTION
Setting		JP15/A	JP15/B	JP15/C	JP15/D
»	INTA	Closed	Open	Open	Open
	INTB	Open	Closed	Open	Open
	INTC	Open	Open	Closed	Open
	INTD	Open	Open	Open	Closed

SECONDARY IDE INTERRUPT SELECTION
Setting		JP16/A	JP16/B	JP16/C	JP16/D
»	INTA	Closed	Open	Open	Open
	INTB	Open	Closed	Open	Open
	INTC	Open	Open	Closed	Open
	INTD	Open	Open	Open	Closed
