ST05A Hard Disk/Floppy Controller Settings and Configuration
SEAGATE TECHNOLOGY, INC.
ST05A
Data bus: 16-bit, ISA
Size: Half-length, full-height card
Hard drives supported: Two IDE (AT) Interface drives
Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB

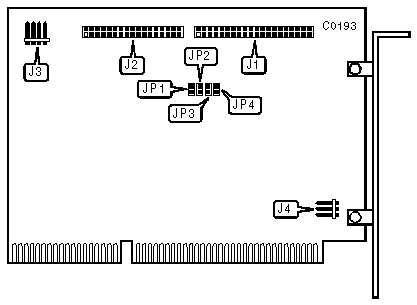

CONNECTIONS | |
40-pin IDE Interface (AT) control cable connector-internal | J1 |
34-pin data cable connector-floppy drive | J2 |
4-pin connector-drive active LED | J3 |
5-pin connector-DC power | J4 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | Floppy drive port address is 3F0-3F7h | JP3 | open |
Floppy drive port address is 370-377h | JP3 | closed | |
| » | Floppy drive enabled | JP4 | open |
Floppy drive disabled | JP4 | closed | |
BIOS ROM ADDRESS | |||
Address | JP1 | JP2 | |
| » | BIOS ROM address is C800-CBFFFh | open | open |
BIOS ROM address is D800-DBFFFh | open | closed | |
BIOS ROM address is D000-D3FFFh | closed | open | |
BIOS ROM address is E000-E3FFFh | closed | closed | |
