OMTI 5100 (REV. N) Hard Disk/Floppy Controller Settings and Configuration

Data bus:	50-pin SCSI interface
Size:	5.75" x 7.85"
Hard drive supported:	Up to two ST506/412 MFM drives
Floppy drives supported:	None

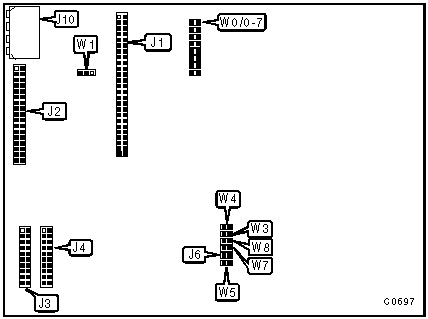

CONNECTIONS
Function	Location
50-pin SCSI interface	J1
34-pin MFM disk control connector	J2
20-pin data cable connector	J3
20-pin data cable connector	J4
DC power connector	J10

SCSI ADDRESS
SCSI ID		W0/0	W0/1	W0/2	W0/3	W0/4	W0/5	W0/6	W0/7
»	0	closed	open	open	open	open	open	open	open
»	1	open	closed	open	open	open	open	open	open
»	2	open	open	closed	open	open	open	open	open
»	3	open	open	open	closed	open	open	open	open
»	4	open	open	open	open	closed	open	open	open
»	5	open	open	open	open	open	closed	open	open
»	6	open	open	open	open	open	open	closed	open
»	7	open	open	open	open	open	open	open	closed

SECTOR CONFIGURATION
Bytes/Sector		Sector/Track	W3	W4
»	256	32	closed	open
»	512	17	open	closed
	512	18	open	open
»	1024	9	closed	closed

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	SCSI parity enabled	W1/pins 1 & 2	closed
»	SCSI parity disabled	W1/pins 2 & 3	closed
»	Factory configured - do not alter	W5	N/A
»	Factory configured - do not alter	J6	N/A
»	Factory configured - do not alter	W7	N/A
»	Factory configured - do not alter	W8	N/A
