RT1000-MC Hard Disk/Floppy Controller Settings and Configuration

RANCHO TECHNOLOGY, INC.

RT1000-MC

Data bus: 16-bit, MCA

Size: Full-length card

Hard drives supported: Up to seven SCSI devices

Floppy drives supported: None

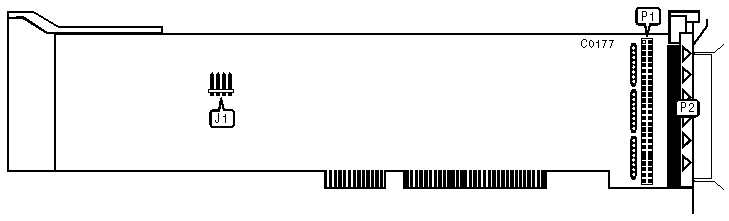

CONNECTIONS
Function
Location
4-pin connector-DC power
J1
50-pin SCSI connector-internal
P1
50-pin SCSI connector-external
P2

MISCELLANEOUS TECHNICAL NOTES
There are no jumpers on the RT1000-MC. All configuration is done through the use of the firmware.
