RTSDA-SF, RTSDA-BP Hard Disk/Floppy Controller Settings and Configuration

Data bus:	None
Size:	3.25 in. form factor
Hard drive supported:	SCSI devices, single-ended to differential converter
Floppy drives supported:	None

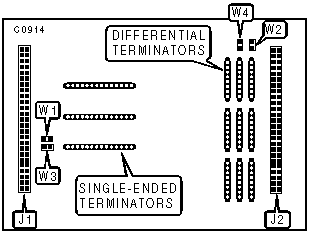

CONNECTIONS
Function	Location
50-pin single-ended SCSI connector - internal	J1
50-pin differential SCSI connector - internal	J2

TERMINATION POWER SETTINGS
		Single-side	Differential-side
	Function	W1	W3	W2	W4
»	TERMPWR supplied to converter terminators internally	open	closed	open	closed
	TERMPWR supplied to converter terminators externally (with internal power protection)	closed	open	closed	open
	TERMPWR supplied to both converter and remote terminators internally and externally	closed	closed	closed	closed
Note: When W1 is closed, TERMPWR is supplied to a remote terminator on the single-ended side. When W2 is closed, TERMPWR is supplied to a remote terminator on the differential side.

MISCELLANEOUS NOTES

The difference between the two models is that RTSDA-BP comes with its own power supply.
