FAST!SCSI PCI ULTRA-N Hard Disk/Floppy Controller Settings and Configuration
Q LOGIC CORPORATION
FAST!SCSI PCI ULTRA-N
Chipset | QLogic ISP-1040 |
Maximum Onboard Memory | 64KB SRAM |
Data Bus | 32-bit PCI |
Card Size | Full height, half length |
Hard Drives Supported | Up to 7 Ultra-SCSI Fast devices |
Floppy Drives Supported | None |
CONNECTIONS | |||
Function | Label | Function | Label |

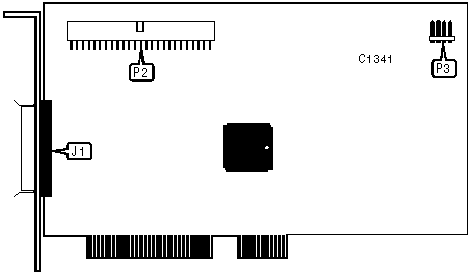

50-pin SCSI-2 connector - external | J1 | 4-pin drive active LED | P3 |
50-pin SCSI-2 connector - internal | P2 | ||
MISCELLANEOUS TECHNICAL NOTES |
The SCSI termination for this card is auto-detected by the card. On some SCSI-1 devices, the auto-detect feature may not function correctly. In this case, set the termination with the configuration software. |
