QLA 1041 Hard Disk/Floppy Controller Settings and Configuration
Q LOGIC CORPORATION
QLA 1041
Card Type | Hard drive controller card |
Chip Set | Unidentified |
Maximum Onboard Memory | Unidentified |
I/O Options | SCSI connectors (3) |
Hard Drives supported | Up to 15 SCSI-2 Fast/Wide/Differential devices |
Floppy drives supported | None |
Data Bus | 32-bit PCI |

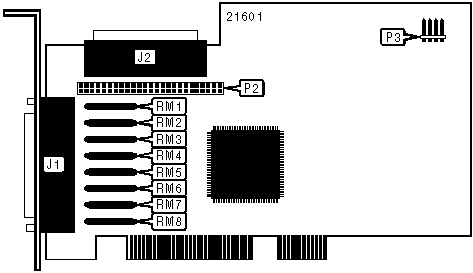

CONNECTIONS | |||
Function | Label | Function | Label |
68-pin SCSI connector - external | J1 | 50-pin SCSI connector - internal | P2 |
68-pin SCSI connector - internal | J2 | LED connector | P3 |
MISCELLANEOUS TECHNICAL NOTES |
When wide devices are connected to J1 and J2 remove all the terminators (RM1-RM8.) For all other combinations, RM4-RM8 should be removed. |
