SCSIMAX PREMIER SCSI Hard Disk/Floppy Controller Settings and Configuration
PROMISE TECHNOLOGY, INC.
SCSIMAX PREMIER SCSI
SCSI ULTRA PREMIER SCSI
Data Bus | 32-bit PCI |
Card Size | Half-height, quarter-length card |
Hard Drives supported | Up to 15 Fast & Wide SCSI 2 drives (SCSIMAX ) Up to 15 Ultra SCSI-2/SCSI-3 drives (SCSIULTRA ) |
Floppy drives supported | None |

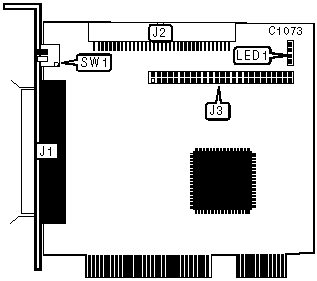

CONNECTIONS | |||
Function | Location | Function | Location |
68-pin SCSI connector - external | J1 | 50-pin SCSI connector - internal | J3 |
68-pin SCSI connector - internal | J2 | 4-pin connector - drive active LED | LED1 |
USER CONFIGURABLE SETTINGS | |||
Function | Label | Position | |
| » | The termination is enabled | SW1 | On |
| The termination is disabled | SW1 | Off | |
Note: Facing the bracket, SW1 ‘On’ position is to the left and ‘Off’ position is to the right. | |||
MISCELLANEOUS TECHNICAL NOTES |
Note: When combining internal and external devices, only one of the internal connectors can be used. |
