DC5030D Hard Disk/Floppy Controller Settings and Configuration

Card Type	Hard drive controller
Hard Drives supported	Four IDE (AT) drives
Floppy drives supported	None
Data Bus	32-bit PCI
Card Size	Half-length, full-height

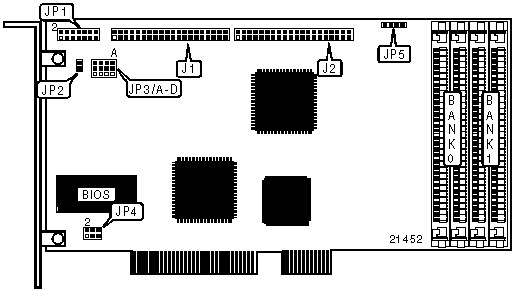

CONNECTIONS
Function	Location	Function	Location
40-pin primary IDE(AT) connector	J1	Mini ISA IRQ support card connector	JP1
40-pin secondary IDE(AT) connector	J2	4-pin connector - drive active LED	JP5

JP1 CONNECTOR PIN-OUT
Pin #	Function	Pin #	Function
1 - 3	Unidentified	5	IRQ15
4	IRQ14	6 - 14	Unidentified

USER CONFIGURABLE SETTINGS
Function	Label	Position
PCI INT (A - D) enabled	JP2	Closed
PCI INT (A - D) disabled	JP2	Open
Relocatable I/O address disabled	JP3/A	Pins 1 & 2 closed
Relocatable I/O address enabled	JP3/A	Pins 2 & 3 closed
Primary IDE (AT) interface enabled	JP3/C	Pins 2 & 3 closed
Secondary IDE (AT) interface enabled	JP3/C	Pins 1 & 2 closed
Connection to ISA IRQ14 enabled	JP3/D	Pins 1 & 2 closed
Connection to ISA IRQ15 enabled	JP3/D	Pins 2 & 3 closed

CACHE MEMORY CONFIGURATION
Size	Bank 0	Bank 1
Unidentified	Unidentified	Unidentified

BIOS ADDRESS SELECTION
Address	JP3/B
D8000h	Pins 1 & 2 closed
DC000h	Pins 2 & 3 closed

PCI INTERRUPT SELECTION
Setting	JP4
INTA	Pins 1 & 3 closed
INTB	Pins 3 & 5 closed
INTC	Pins 2 & 4 closed
INTD	Pins 4 & 6 closed
Note:You can only use one INT at a time.
