DC4030VL Hard Disk/Floppy Controller Settings and Configuration
PROMISE TECHNOLOGY, INC.
DC4030VL
Data bus: | 32-bit, VL-bus |
Size: | Three/quarter-length, full-height card |
Hard drive supported: | Four IDE (AT) Interface drives |
Floppy drives supported: | Four 360KB, 720KB, 1.2MB, 1.44MB, or 2.88MB drives |

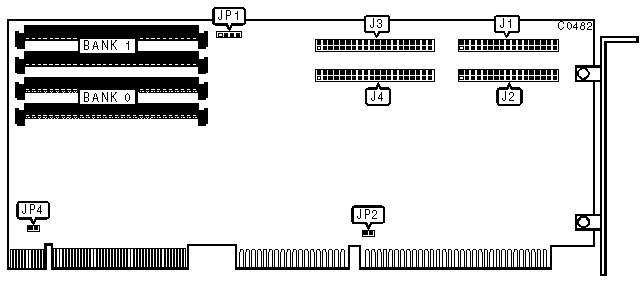

CONNECTIONS | |
Function | Location |
34-pin control cable connector - floppy drive BUS-0 | J1 |
34-pin control cable connector - floppy drive BUS-1 | J2 |
40-pin IDE (AT) Interface connector IDE-0 | J3 |
40-pin IDE (AT) Interface connector IDE-1 | J4 |
4-pin connector - drive active LED | JP1 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | Floppy drive enabled | JP2 | Closed |
Floppy drive disabled | JP2 | Open | |
| » | VL-bus ID3 signal support enabled* | JP4 | Closed |
VL-bus ID3 signal support disabled* | JP4 | Open | |
*Note: Open JP4 if your motherboard is 50MHz 486 and does not support ID3 signal. | |||
MISCELLANEOUS TECHNICAL NOTES |
At least one pair SIMM of memory modules (256KB, 1MB, or 4MB) of the same size must be installed in Bank 0 in order for the controller to function. |
