S-DCB Hard Disk/Floppy Controller Settings and Configuration
PROCOMP USA, INC.
S-DCB
Data bus: | 16-bit, ISA |
Size: | Full-length, full-height card |
Hard drive supported: | Up to seven SCSI drives |
Floppy drives supported: | 360KB, 720KB, 1.2MB, or 1.44MB (2) |

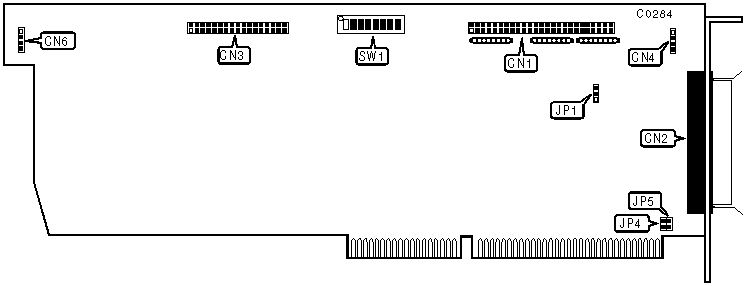

CONNECTIONS | |
Purpose | Location |
SCSI drive interface (50 pin) internal | CN1 |
SCSI drive interface (25 pin) external | CN2 |
Floppy drive interface | CN3 |
UPS/status output cable | CN4 |
Hard Drive activity LED | CN6 |
CHANNEL SELECT CONFIGURATION | |||||
Channel | I/O Address | IRQ | SW1/switch 1 | SW1/switch 2 | SW1/switch 3 |
1 | 340h | IRQ11 | off | off | on |
2 | 348h | IRQ12 | on | on | on |
3 | 320h | IRQ10 | off | on | on |
4 | 328h | IRQ15 | on | off | on |
5 | 380h | IRQ10 | off | on | off |
6 | 388h | IRQ15 | on | off | off |
Disabled | N/A | N/A | on | on | off |
Disabled | N/A | N/A | off | off | off |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | Controller supplies TERMPWR to SCSI interface 26 | JP1 | pins 2 & 3 closed |
TERMPWR not supplied to SCSI Interface 26 | JP1 | pins 1 & 2 closed | |
| » | UPS uses open contact to indicate"Battery Low" | JP4 | open |
UPS uses closed contact to indicate"Battery Low" | JP4 | closed | |
| » | UPS uses open contact to indicate"On-Line" | JP5 | open |
UPS uses closed contact to indicate"On-Line" | JP5 | closed | |
| » | Floppy drive enabled | SW1/switch 7 | on |
Floopy drive disabled | SW1/switch 7 | off | |
| » | SCSI parity check enabled | SW1/switch 8 | on |
SCSI parity check disabled | SW1/switch 8 | off | |
BIOS ADDRESS CONFIGURATION | |||
Address | SW1/switch 5 | SW1/switch 6 | SW1/switch 7 |
Disabled | off | off | off |
DC00h | off | off | on |
DA00h | off | on | off |
D800h | off | on | on |
CE00h | on | off | off |
CCOOh | on | off | on |
CA00h | on | on | off |
C800h | on | on | on |
