PERSTOR SYSTEMS, INC.
PS180-16F
Data bus: | 16-bit ISA |
Size: | Three/quarter length, full-height card |
Hard drives supported: | Two MFM or RLL ST506/412 drives |
Floppy drives supported: | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |
Maximum heads/cyl.: | 15 heads and 2,048 cylinders |
CONNECTIONS | |

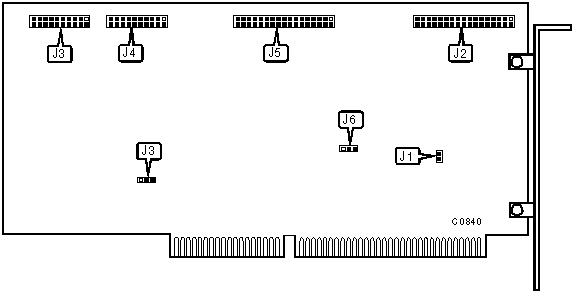

Function | Location |
34-pin control cable connector- floppy drive | J2 |
20-pin data cable connector - drive 1 | J3 |
20-pin data cable connector - drive 0 | J4 |
34-pin control cable connector - hard drive | J5 |
USER CONFIGURABLE SETTINGS - ALL REVISIONS | |||
Function | Location | Setting | |
» | BIOS enabled | J1 | closed |
BIOS disabled | J1 | open | |
» | Floppy disk controller enabled | J6/pins 1 & 2 | closed |
Floppy disk controller disabled | J6/pins 2 & 3 | closed | |
» | Port address is 1F0h-1F7h | J3/pins 1 & 2 | closed |
Port address is 170h-177h | J3/pins 2 & 3 | closed |
