PATHFINDER PSI-2500 Hard Disk/Floppy Controller Settings and Configuration
PERCEPTIVE SOLUTIONS, INC.
PATHFINDER PSI-2500
Data bus: | 32-bit VL bus |
Size: | Three-quarter length, full-height card |
Hard drive supported: | Up to seven Fast SCSI-2 devices |
Floppy drives supported: | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |

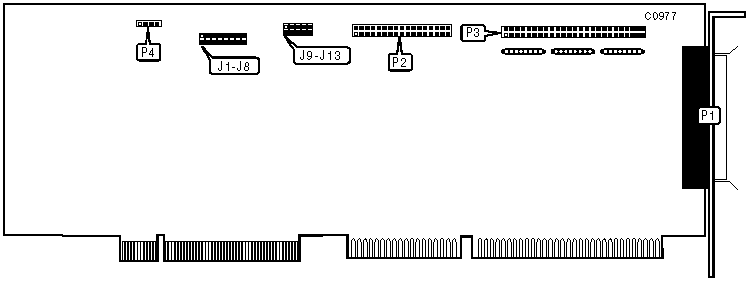

CONNECTIONS | |
Function | Location |
50-pin SCSI connector - external | P1 |
34-pin cable connector - floppy drive | P2 |
50-pin SCSI connector - internal | P3 |
4-pin connector - drive active LED | P4 |
USER CONFIGURABLE SETTINGS | |||
| Function | Location | Setting | |
| Synchronous Negotiation disabled | J3 | Closed | |
| Synchronous Negotiation enabled | J3 | Open | |
| » | Factory configured - do not alter | J4 | Closed |
| » | Floppy drive controller is primary | J13 | Open |
| Floppy drive controller is secondary | J13 | Closed | |
BIOS ADDRESS SELECTION | ||
Address | J5 | J6 |
| C8000-CEFFFh | Closed | Open |
| D0000-D7FFFh | Open | Closed |
| D8000-DFFFFh | Open | Open |
INTERRUPT SELECTION | ||||||
INT | J7 | J8 | J9 | J10 | J11 | J12 |
10 | Open | Closed | Open | Closed | Open | Open |
11 | Closed | Open | Open | Open | Closed | Open |
12 | Open | Open | Closed | Open | Open | Open |
14 | Closed | Closed | Open | Open | Open | Closed |
HARD DISK FORMAT SELECTION | ||
Layout | J1 | J2 |
64 Heads/32 Sectors (Adaptec compatible) | Closed | Closed |
255 Heads/63 Sectors (8 GB) | Open | Open |
