PATHFINDER PSI-2700 Hard Disk/Floppy Controller Settings and Configuration

PERCEPTIVE SOLUTIONS, INC.

PATHFINDER PSI-2700

Data bus:
32-bit PCI
Size:
Three-quarter length, full-height card
Hard drive supported:
Up to seven Fast SCSI-2 devices
Floppy drives supported:
None

CONNECTIONS
Function
Location

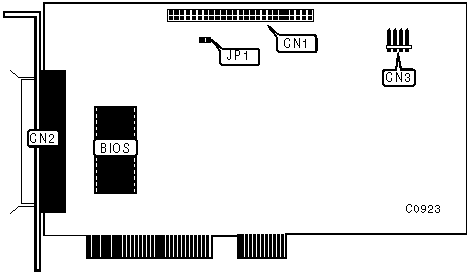

50-pin SCSI connector - internal
CN1
50-pin SCSI connector - external
CN2
4-pin connector - drive active LED
CN3

USER CONFIGURABLE SETTINGS
Function
Location
Setting
»
Active termination enabled
JP1
closed

Active termination disabled
JP1
open
Note: Disable termination if both internal and external devices are used.
Enable termination if Host Adapter is at the end of internal/external device chain.
