V-U418FR VIO Hard Disk/Floppy Controller Settings and Configuration

Data bus:	32-bit, VL-bus
Size:	Three/quarter-length, full-height card
Hard drive supported:	Two IDE (AT) Interface drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

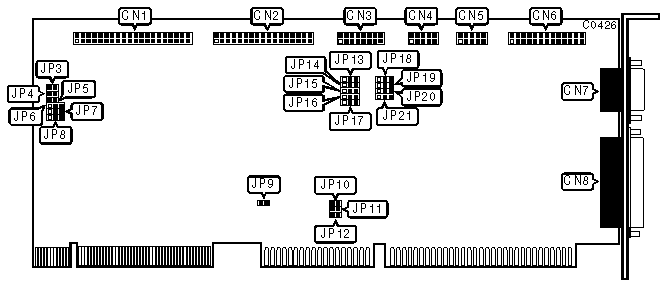

CONNECTIONS
Function	Location
40-pin IDE(AT) Interface connector	CN1
34-pin control cable connector - floppy drive	CN2
16-pin game port - internal	CN3
10-pin serial port 1 (COM1/3) - internal	CN4
10-pin serial port 2 (COM2/4) - internal	CN5
26-pin VESA video feature connector - internal	CN6
15-pin VGA analog video port - external	CN7
25-pin parallel port (LPT2/3) - external	CN8
2-pin connector - Drive active LED	JP3

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Hard drive port address is 170-177h	JP4	open
	Hard drive port address is 1F0-1F7h	JP4	closed
»	Hard drive disabled	JP5	open
	Hard drive enabled	JP5	closed
»	VGA port Interrupt Request IRQ9 disabled	JP9	open
	VGA port Interrupt Request IRQ9 enabled	JP9	closed
»	BIOS enabled	JP10	pins 1 & 2 closed
	BIOS disabled	JP10	pins 2 & 3 closed
»	Parallel port (CN8) enabled	JP13	pins 1 & 2 closed
	Parallel port (CN8) disabled	JP13	pins 2 & 3 closed

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	Serial Port 1 (CN4) enabled	JP14	pins 1 & 2 closed
	Serial Port 1 (CN4) disabled	JP14	pins 2 & 3 closed
»	Serial Port 2 (CN5) enabled	JP15	pins 1 & 2 closed
	Serial Port 2 (CN5) disabled	JP15	pins 2 & 3 closed
»	Floppy drive enabled	JP16	pins 1 & 2 closed
	Floppy drive disabled	JP16	pins 2 & 3 closed
»	Game Port (CN3) enabled	JP17	pins 1 & 2 closed
	Game Port (CN3) disabled	JP17	pins 2 & 3 closed
»	Parallel port (CN8) is set to LPT2	JP18	pins 1 & 2 closed
	Parallel port (CN8) is set to LPT3	JP18	pins 2 & 3 closed
»	Serial Port 1 (CN4) is set to COM1	JP19	pins 1 & 2 closed
	Serial Port 1 (CN4) is set to COM3	JP19	pins 2 & 3 closed
»	Serial Port 2 (CN5) is set to COM2	JP20	pins 1 & 2 closed
	Serial Port 2 (CN5) is set to COM4	JP20	pins 2 & 3 closed
»	Hard drive controller installation does not exist	JP21	pins 2 & 3 closed
	Hard drive controller installation exists	JP21	pins 1 & 2 closed

GREEN PC SPECIFICATIONS CONFIGURATION
Active/Cycle		JP6	JP7	JP8
»	18/37	pins 2 & 3 closed	pins 2 & 3 closed	pins 2 & 3 closed
	15/30	pins 1 & 2 closed	pins 1 & 2 closed	pins 1 & 2 closed
	15/19	pins 2 & 3 closed	pins 1 & 2 closed	pins 1 & 2 closed
	9/13	pins 1 & 2 closed	pins 2 & 3 closed	pins 1 & 2 closed
	18/37	pins 2 & 3 closed	pins 2 & 3 closed	pins 1 & 2 closed
	10/20	pins 1 & 2 closed	pins 1 & 2 closed	pins 2 & 3 closed
	10/14	pins 2 & 3 closed	pins 1 & 2 closed	pins 2 & 3 closed
	5/9	pins 1 & 2 closed	pins 2 & 3 closed	pins 2 & 3 closed

BIOS ADDRESS
Address		JP11	JP12
»	DC00h	open	open
	DB00h	closed	open
	CC00h	open	closed
	CB0Ch	closed	closed
