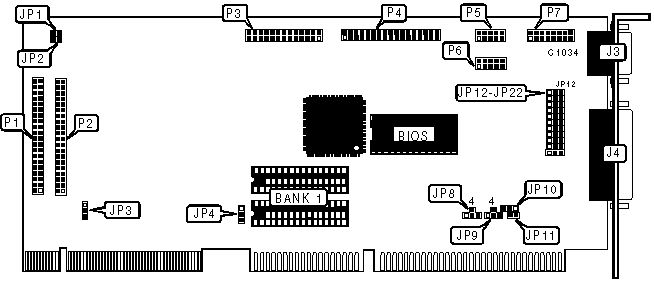

VL-COMBO-2 Hard Disk/Floppy Controller Settings and Configuration

Data Bus	32-bit VESA Local Bus
Card Size	Three-quarter length, full-height card
Hard Drives supported	Four IDE(AT) interface drives
Floppy drives supported	360KB, 720KB, 1.2MB, or 1.44MB drives

CONNECTIONS
Function	Location	Function	Location
15-pin connector - VGA port	J3	26-pin feature connector	P3
25-pin parallel port - external	J4	34-pin cable connector - floppy drive	P4
2-pin connector - secondary drive active LED	JP1	10-pin serial port 2 - internal	P5
2-pin connector - primary drive active LED	JP2	10-pin serial port 1 - internal	P6
40-pin secondary IDE(AT) connector	P1	16-pin game port	P7
40-pin primary IDE(AT) connector	P2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	VL-IDE interface enabled	JP3	Pins 1 & 2 closed
	VL-IDE interface disabled	JP3	Pins 2 & 3 closed
»	VL bus normal speed enabled (one wait state)	JP4	Pins 1 & 2 closed
	VL bus turbo speed enabled (zero wait state)	JP4	Pins 2 & 3 closed
»	Factory configured - do not alter	JP8	Unidentified
»	Factory configured - do not alter	JP9	Unidentified
»	IRQ9 disabled	JP10	Pins 1 & 2 closed
	IRQ9 enabled for vertical sync signal	JP10	Pins 2 & 3 closed
»	Factory configured - do not alter	JP11	Open
»	Floppy drive interface enabled	JP12	Pins 1 & 2 closed
	Floppy drive interface disabled	JP12	Pins 2 & 3 closed
»	Serial port 1 enabled	JP13	Pins 1 & 2 closed
	Serial port 1 disabled	JP13	Pins 2 & 3 closed
»	Serial port 2 enabled	JP14	Pins 1 & 2 closed
	Serial port 2 disabled	JP14	Pins 2 & 3 closed
»	Serial port 1 I/O address is 3F8h	JP15	Pins 1 & 2 closed
	Serial port 1 I/O address is 3E8h	JP15	Pins 2 & 3 closed

USER CONFIGURABLE SETTINGS (CONTINUED)
Function		Label	Position
»	Serial port 2 I/O address is 2F8h	JP16	Pins 1 & 2 closed
	Serial port 2 I/O address is 2E8h	JP16	Pins 2 & 3 closed
»	Parallel port enabled	JP17	Pins 1 & 2 closed
	Parallel port disabled	JP17	Pins 2 & 3 closed
»	Factory configured - do not alter	JP18	Pins 2 & 3 closed
»	Parallel port I/O address is 378h	JP19	Pins 1 & 2 closed
	Parallel port I/O address is 278h	JP19	Pins 2 & 3 closed
»	Game port enabled	JP20	Pins 1 & 2 closed
	Game port disabled	JP20	Pins 2 & 3 closed
»	Factory configured - do not alter	JP21	Pins 2 & 3 closed
»	Factory configured - do not alter	JP22	Unidentified

VGA DRAM CONFIGURATION
Size	Bank 0	Bank 1
1MB	1MB	None
2MB	1MB	(2) 256KBx16
Note: The VL-COMBO-2 comes with 1MB of memory installed; the location (Bank 0) is unidentified
