NXT-93 Hard Disk/Floppy Controller Settings and Configuration

Data bus:	32-bit PCI
Size:	Half-length, full-height card
Hard drive supported:	Up to seven SCSI-1 & SCSI-2 devices
Floppy drives supported:	None

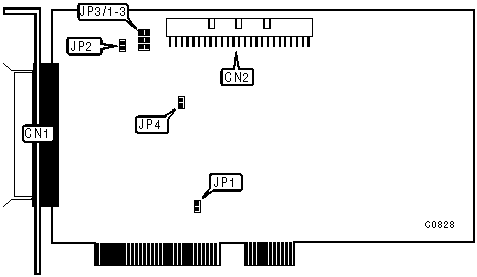

CONNECTIONS
Function	Location
50-pin SCSI-2 connector - external	CN1
50-pin SCSI connector - internal	CN2

USER CONFIGURABLE SETTINGS
Function	Location	Setting
On board BIOS enabled	JP1	open
On board BIOS disabled	JP1	closed
Supports hard drive >1GB	JP2	closed
Supports hard drive <=1GB	JP2	open
Host adapter termination enabled	JP4	open
Host adapter termination disabled	JP4	closed

BASE I/O ADDRESS
Address		JP3/jumper 1	JP3/jumper 2	JP3/jumper 3
»	DC000h	open	open	open
	CC000h	open	open	closed
	D4000h	open	closed	open
