NCL 5126 Hard Disk/Floppy Controller Settings and Configuration






NCL AMERICA

NCL 5126

Data bus: 16-bit, ISA

Size: Half-length, full-height card

Hard Drives Supported: Two ST506/412 drives

Floppy Drives Supported: None

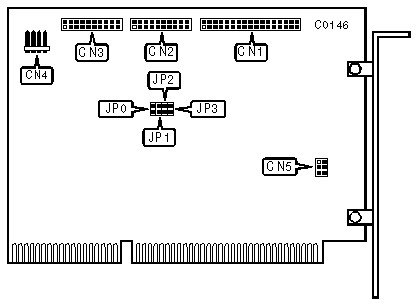

CONNECTIONS

Functions

Locations

34-pin control cable connector-hard drive

CN1

20-pin data cable connector-drive 0

CN2

20-pin data cable connector-drive 1

CN3

4-pin connector-drive active LED

CN4

4-pin connector-DC power

CN5

USER CONFIGURABLE SETTINGS

Function

Location

Setting

Hard drive port address is 1F0-1F7h

JP0

open



Hard drive port address is 170-177h

JP0

closed

Floppy drive port address is 3F2-3F7h

JP1

open



Floppy drive port address is 372-377h

JP1

closed

Factory configured - do not alter

JP2

open

Factory configured - do not alter

JP3

closed
