BT-930 Hard Disk/Floppy Controller Settings and Configuration






MYLEX CORPORATION

BT-930

Card Type

Hard drive controller card

Hard Drives supported

Up to 7 SCSI devices

Floppy drives supported

None

Data Bus

32-bit PCI

Card Size

Half-length, half-height card

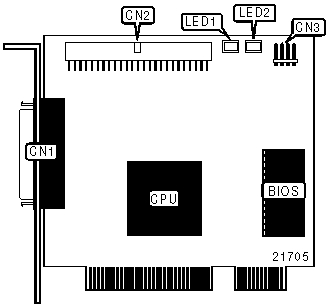

CONNECTIONS

Function

Location

Function

Location

50-pin SCSI connector - external

CN1

4-pin connector - drive active LED

CN3

50-pin SCSI connector - internal

CN2



DIAGNOSTIC LED(S)

Note: The function of the LEDís is unidentified.
