MECER CORPRATION
B355
Data bus: | 32-bit PCI |
Size: | Three/quarter-length, full-height card |
Hard drive supported: | Up to seven SCSI drives |
Floppy drives supported: | None |

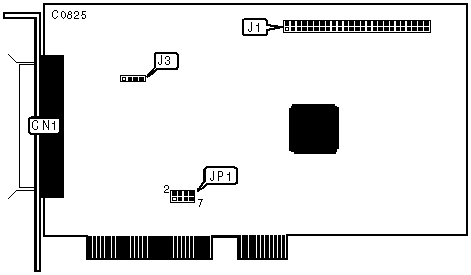

CONNECTIONS | |
Function | Location |
50-pin SCSI connector - external | CN1 |
50-pin SCSI connector - internal | J1 |
4-pin connector - drive active LED | J3 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
» | IRQ signal connects to INTA# | JP1/pins 1 & 2 | closed |
IRQ signal connects to INTB# | JP1/pins 3 & 4 | closed | |
IRQ signal connects to INTC# | JP1/pins 5 & 6 | closed | |
IRQ signal connects to INTD# | JP1/pins 7 & 8 | closed |
