AT ADAPTER BOARD Hard Disk/Floppy Controller Settings and Configuration
MAXTOR CORPORATION
AT ADAPTER BOARD
Data bus: 16-bit, ISA
Size: Half-length, full height card
Hard drives supported: Two IDE (AT) Interface drives
Floppy drives supported: None

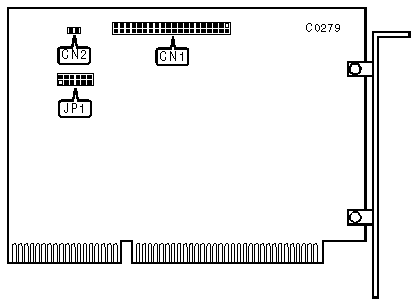

CONNECTIONS | |
Function | Location |
40-pin AT Interface (IDE) connector-internal | CN1 |
2-pin connector-drive active LED | CN2 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | Hard drive port address is 1F0-1F7h | JP1/Jumper 1 | open |
Hard drive port address is 170-177h | JP1/Jumper 1 | closed | |
| » | I/O Channel Ready enabled | JP1/Jumper 2 | closed |
I/O Channel Ready disabled | JP1/Jumper 2 | open | |
| » | Factory configured - do not alter | JP1/Jumper 3 | open |
| » | Factory configured - do not alter | JP1/Jumper 4 | closed |
| » | Factory configured - do not alter | JP1/Jumper 5 | open |
| » | Drive active LED enabled | JP1/Jumper 6 | closed |
Drive active LED disabled | JP1/Jumper 6 | open | |
