LCS-6623 REV. N1 Hard Disk/Floppy Controller Settings and Configuration
LONGSHINE MICROSYSTEM, INC.
LCS-6623 REV. N1
Data bus: | 16-bit, ISA |
Size: | Half-length, full-height card |
Hard drive supported: | Two IDE (AT) Interface drives |
Floppy drives supported: | Two 360KB, 720KB, 1.2MB, or 1.44MB drives |

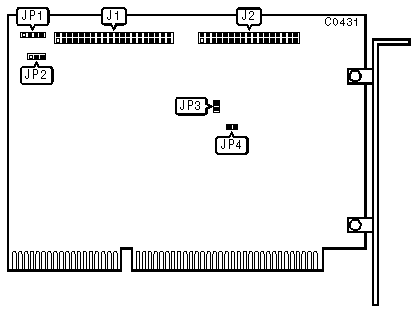

CONNECTIONS | |
Function | Location |
40-pin AT Interface (IDE) connector | J1 |
34-pin control cable connector-floppy drive | J2 |
4-pin connector-Drive active LED | JP1 |
USER CONFIGURABLE SETTINGS | |||
Function | Location | Setting | |
| » | IRQ connected directly to host | JP2 | pins 2 & 3 closed |
| IRQ Buffer mode enabled | JP2 | pins 1 & 2 closed | |
| » | Zero wait state disabled | JP3 | open |
Zero wait state enabled | JP3 | closed | |
| » | Floppy drive enabled | JP4 | closed |
Floppy drive disabled | JP4 | open | |
