C5635, TIE-250 Hard Disk/Floppy Controller Settings and Configuration

Data bus:	16-bit, ISA
Size:	Half-length, full-height card
Hard drives supported:	UP to seven SCSI devices
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

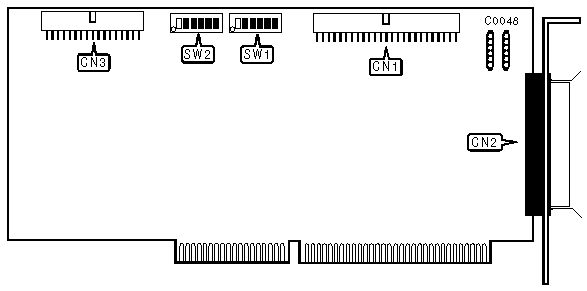

CONNECTIONS
Function	Location
50-pin SCSI connector-internal	CN1
50-pin SCSI connector-external	CN2
34-pin data cable connector-floppy drive	CN3

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	C5635 or TIE-250 is not the only controller	SW2/switch 2	on
	C5635 orTIE-250 is the only controller	SW2/switch 2	off
»	Floppy drive disabled	SW2/switch 3	on
	Floppy drive enabled	SW2/switch 3	off
»	Floppy drive port address is 370-377h	SW2/switch 4	on
	Floppy drive port address is 3F0-3F7h	SW2/switch 4	off

I/O PORT ADDRESS
Address		SW2/switch 5	SW2/switch 6
»	320h	on	on
	330h	on	off
	340h	off	on
	350h	off	off

INTERRUPT REQUEST
IRQ		SW1/switch 1	SW1/switch 2
»	IRQ5	on	on
	IRQ10	off	on
	IRQ11	on	off
	IRQ15	off	off

BIOS ADDRESS
Address		SW1/switch 3	SW1/switch 4	SW1/switch 5	SW1/switch 6
»	Disabled	on	on	on	on
	C000:0000h	on	on	on	off
	C000:4000h	off	on	on	off
	C000:8000h	on	off	on	off
	C000:C000h	off	off	on	off
	D000:0000h	on	on	off	off
	DO00:4000h	off	on	off	off
	D000:8000h	on	off	off	off
	DOOO:C000h	off	off	off	off
