RIMFIRE 5500 Hard Disk/Floppy Controller Settings and Configuration






CIPRICO, INC.

RIMFIRE 5500

Data bus: 16-bit, ISA

Size: Full-length, full-height card

Hard drives supported: Up to seven SCSI devices.

Floppy drives supported: Two 360KB, 720KB, 1.2MB, or 1.44MB

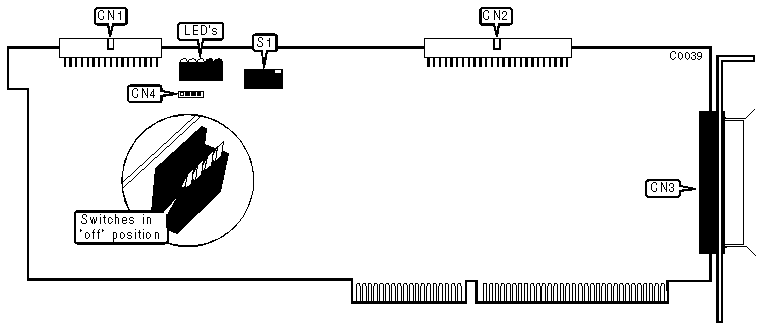

CONNECTIONS

Function

Location

34-pin data cable connector-floppy drive

CN1

50-pin SCSI connector-internal

CN2

50-pin SCSI connector-external

CN3

4-pin connector-drive active LED

CN4

FLOPPY CONFIGURATION

Function

Location

Setting

»

Floppy port set to ISA standard values

S1/switch 1

off



Floppy port operates from EEPROM values

S1/switch 1

on

BIOS AND DUAL PORT MEMORY ADDRESS

Address

S1/switch 2

S1/switch 3

S1/switch 4

»

C8000-CBFFFh

off

on

on



CA000-CBFFFh / BIOS disabled

on

on

on



CC000-CFFFFh

off

off

on



CE000-CFFFFh / BIOS disabled

on

off

on



D8000-DBFFFh

off

on

off



DA000-DBFFFh / BIOS disabled

on

on

off



DC000-DFFFFh

off

off

off



DE000-DFFFFh / BIOS disabled

on

off

off

STATUS LEDS

LED

Definition

LED 1-Yellow

DMA transfer in progress

LED 2-Yellow

Adapter has queued commands

LED 3-Yellow

Adapter is idle and waiting on host

LED 4-Red

Self-Test. Fails if flashing continues or stays on for extended period.

LED 5-Green

Adapter is processing command
