IODE-3298WEI Hard Disk/Floppy Controller Settings and Configuration

Data Bus	16-bit ISA
Card Size	Half-length, half-height card
Hard Drives supported	Two IDE (AT) drives
Floppy drives supported	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

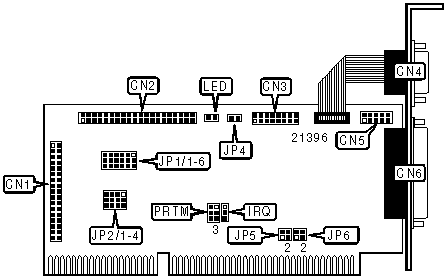

CONNECTIONS
Function	Location	Function	Location
34-pin cable connector - floppy drive	CN1	10-pin serial port 2 - internal	CN5
40-pin IDE(AT) connector	CN2	25-pin parallel port - external	CN6
16-pin game port	CN3	2-pin connector - drive active LED	LED
9-pin serial port 1 - external	CN4

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Parallel port IRQ 7 select	IRQ	Pins 1 & 2 closed
	Parallel port IRQ 5 select	IRQ	Pins 2 & 3 closed
»	Game port enabled	JP4	Closed
	Game port disabled	JP4	Open

HDD PORT SELECTION
Setting	JP2/1	JP2/2
170h	Pins 1 & 2 closed	Pins 2 & 3 closed
1F0h	Pins 1 & 2 closed	Pins 1 & 2 closed
Disabled	Pins 2 & 3 closed	N/A

FDD PORT SELECTION
Setting	JP2/1	JP2/2
Order is normal (A:, B:)	Pins 1 & 2 closed	Pins 1 & 2 closed
Order is reversed (B:, A:)	Pins 1 & 2 closed	Pins 2 & 3 closed
Disabled	Pins 2 & 3 closed	N/A

PARALLEL PORT ADDRESS SELECTION
Setting	JP1/5	JP1/6
LPT1 (378h)	Pins 1 & 2 closed	Pins 1 & 2 closed
LPT2 (278h)	Pins 1 & 2 closed	Pins 2 & 3 closed
LPT3 (3BCh)	Pins 2 & 3 closed	Pins 2 & 3 closed
Disabled	Pins 2 & 3 closed	Pins 1 & 2 closed

SERIAL PORT 1 ADDRESS SELECTION
Setting	JP1/1	JP1/2
COM1 (3F8h)	Pins 1 & 2 closed	Pins 1 & 2 closed
COM3 (3E8h)	Pins 1 & 2 closed	Pins 2 & 3 closed
COM4 (2E8h)	Pins 2 & 3 closed	Pins 2 & 3 closed
Disabled	Pins 2 & 3 closed	Pins 1 & 2 closed

SERIAL PORT 2 ADDRESS SELECTION
Setting	JP1/3	JP1/4
COM2 (2F8h)	Pins 1 & 2 closed	Pins 1 & 2 closed
COM3 (3E8h)	Pins 1 & 2 closed	Pins 2 & 3 closed
COM4 (2E8h)	Pins 2 & 3 closed	Pins 2 & 3 closed
Disabled	Pins 2 & 3 closed	Pins 1 & 2 closed

PARALLEL PORT MODE SELECTION
Setting	JP3/2	JP3/3	JP/5	JP/6
Standard	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
EPP	Pins 2 & 3 closed	Pins 1 & 2 closed	Pins 1 & 2 closed	Pins 1 & 2 closed
ECP	Pins 1 & 2 closed	Pins 2 & 3 closed	Pins 1 & 3 closed	Pins 1 & 3 closed
