ASKA-2845-E Hard Disk/Floppy Controller Settings and Configuration

Data bus:	16-bit, ISA
Size:	Half-length, half-height card
Hard drive supported:	Two IDE (AT) interface drives
Floppy drives supported:	Two 360KB, 720KB, 1.2MB, or 1.44MB drives

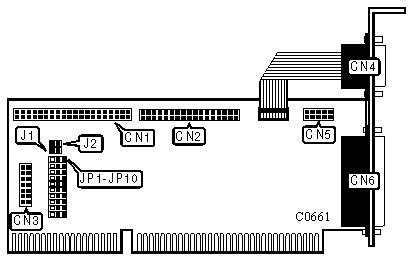

CONNECTIONS
Function	Location
40-pin IDE (AT) Interface connector	CN1
34-pin control cable connector - floppy drive	CN2
Game port	CN3
9-pin serial port 1 - external	CN4
10-pin serial port 2 - internal	CN5
25-pin parallel port	CN6
2-pin connector - drive active LED	J2

USER CONFIGURABLE SETTINGS
Function		Location	Setting
»	I/O Channel Ready signal disabled	J1	Open
	I/O Channel Ready signal enabled	J1	Closed
»	Game port enabled	JP3	Pins 1 & 2 closed
	Game port disabled	JP3	Pins 2 & 3 closed
»	Floppy drive enabled	JP7	Pins 1 & 2 closed
	Floppy drive disabled	JP7	Pins 2 & 3 closed
»	HDC exists	JP8	Pins 1 & 2 closed
	HDC does not exist	JP8	Pins 2 & 3 closed
»	HDD enabled	JP9	Pins 1 & 2 closed
	HDD disabled	JP9	Pins 2 & 3 closed

SERIAL PORT 2 CONFIGURATION
COM/Address		JP1	JP2
»	COM2/2F8h	Pins 1 & 2 closed	Pins 1 & 2 closed
	COM4/2E8h	Pins 2 & 3 closed	Pins 1 & 2 closed
	Disabled	N/A	Pins 2 & 3 closed

SERIAL PORT 1 CONFIGURATION
COM/Address		JP4	JP6
»	COM1/3F8h	Pins 1 & 2 closed	Pins 1 & 2 closed
	COM3/3E8h	Pins 2 & 3 closed	Pins 1 & 2 closed
	Disabled	N/A	Pins 2 & 3 closed

PARALLEL PORT CONFIGURATION
LPT/Address		JP5	JP10
»	LPT1/378h	Pins 1 & 2 closed	Pins 1 & 2 closed
	LPT2/278h	Pins 2 & 3 closed	Pins 1 & 2 closed
	Disabled	N/A	Pins 2 & 3 closed
