AEC6710S Hard Disk/Floppy Controller Settings and Configuration






ACARD TECHNOLOGY CORPORATION

AEC6710S

Card Type

Controller card

Maximum Onboard Memory

Unidentified

Hard Drives supported

Up to 7 SCSI devices

Floppy drives supported

None

I/O Options

SCSI connector (2), LED connector

Data Bus

16-bit ISA

Card Size

Half-length, half-height card

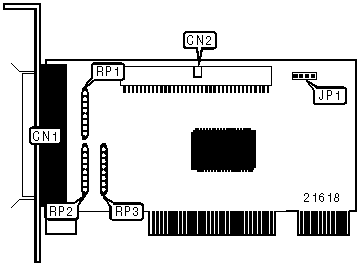

CONNECTIONS

Function

Location

Function

Location

50-pin SCSI connector - external

CN1

Terminator 1

RP1

50-pin SCSI connector - internal

CN2

Terminator 2

RP2

4-pin connector - drive active LED

JP1

Terminator power terminator

RP3








TOP
