PARADISE PIPELINE 64VESA (REV.1) video card Settings and Configuration
WESTERN DIGITAL CORPORATION
PARADISE PIPELINE 64VESA (REV.1)
Category | Video |
Video Types Supported | XVGA |
Video Processor | Western Digital |
Highest Resolution Supported | 1600 x 1200 |
Data Bus Type | 32-bit VESA Local Bus |
Memory Type | DRAM (EDO) |
Maximum Onboard Memory | 2MB |

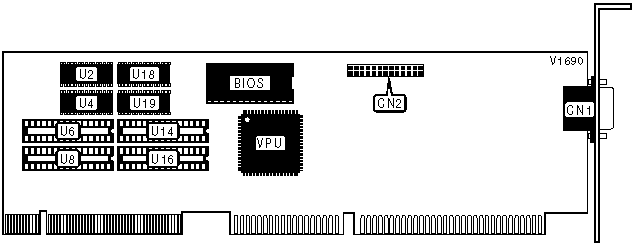

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | Feature connector | CN2 |
DRAM CONFIGURATION | ||
Size | Bank 0 (U2, U4, U18 & U19) | Bank 1 (U6, U8, U14 & U16) |
1MB | (4) 256K x 8 | NONE |
2MB | (4) 256K x 8 | (4) 256K x 8 |
