PARADISE ACCELERATOR VL PLUS video card Settings and Configuration

Category	Video
Video Types Supported	XVGA
Video Processor	WD90C33
Highest Resolution Supported	1280 X 1024
Data Bus Type	32-bit VESA Local Bus
Memory Type	DRAM
Maximum Onboard Memory	2048KB

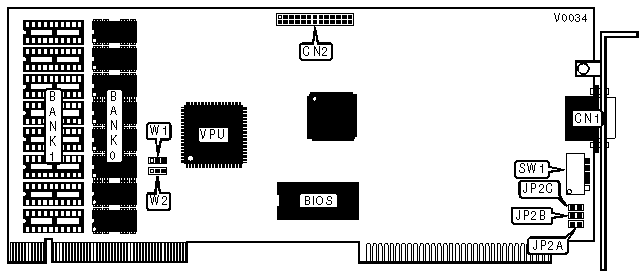

CONNECTIONS
Purpose	Location	Location	Purpose
15-pin analog video port	CN1	VESA Feature connector	CN2

FACTORY CONFIGURED - DO NOT ALTER
Jumper	Position
JP2C	Closed

CPU TYPE SELECTION
Type		W1
»	80486	Pins 2 & 3 closed
	80386	Pins 1 & 2 closed

VL BUS SELECTION
VL-BUS		W2
»	Disabled	Pins 1 & 2 closed
	Enabled	Pins 2 & 3 closed

REFRESH MODE SETTINGS
Mode		JP2/A
»	60Hz in mode 3, 12, 5E, 5F	Closed
	72Hz in mode 3, 12, 5E, 5F	Open

LOCAL BUS TIMING SELECTION
Timing		JP2/B
»	2 clocks	Closed
	4 clocks	Open

800 X 600 REFRESH RATE SELECTION
Rate		SW1/1	SW1/2
»	56Hz	Off	Off
	72Hz	On	Off
	60Hz	Off	On
	56Hz	On	On

1024 X 768 REFRESH RATE CONFIGURATION
Rate		Mode	SW1/3	SW1/4
»	86Hz	Interlaced	Off	Off
	70Hz	Non-Interlaced	On	Off
	60Hz	Non-Interlaced	Off	On
	72Hz	Non-Interlaced	On	On

FONT SELECTION
Setting		SW1/5
»	Standard Fonts	Off
	TUV Fonts	On
Note: TUV is the German standard for character spacing, and may not be compatible with some DOS applications

DRAM CONFIGURATION
Size	Bank 0	Bank 1
1024KB	(8) 44256	NONE
2048KB	(8) 44256	(8) 44256
