PARADISE PVC4 video card Settings and Configuration






WESTERN DIGITAL CORPORATION

PARADISE PVC4

Category

Video

Video Types Supported

CGA

Video Processor

Unidentified

Highest Resolution Supported

720 x 350 (Monochrome)

Data Bus Type

8-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

64KB

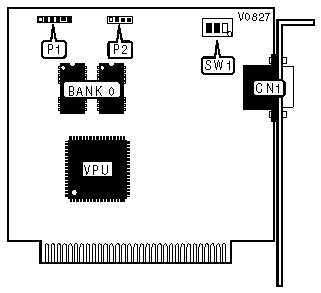

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

Composite video connector

P2

Light pen connector

P1



COLOR/MONOCHROME SELECT

Setting

SW1/1

Color

On

Monochrome

Off

FACTORY CONFIGURED SETTINGS

Switch

Setting

SW1/2

On

SW1/3

On
