GRAFIXSTAR 600/PCI video card Settings and Configuration

Card Type	Video card
Video Chip Set	Tseng Labs
Maximum Video Memory	4.25MB MDRAM
Video Types Supported	XVGA
Highest Resolution Supported	1280 x 1024
Data Bus	32-bit PCI

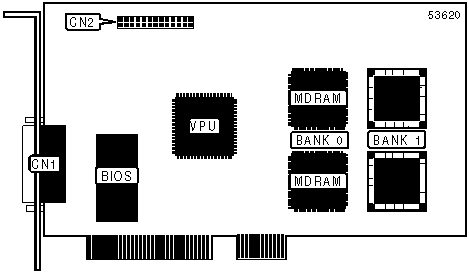

CONNECTIONS
Function	Label	Function	Label
15-pin analog video port	CN1	Feature connector	CN2

VIDEO MEMORY CONFIGURATION (MDRAM)

Note: Memory configuration is unidentified.
