V7 VEGA VGA video card Settings and Configuration

Category	Video
Video Types Supported	XVGA
Video Processor	Unidentified
Highest Resolution Supported	800 x 600
Data Bus Type	16-bit ISA
Memory Type	Unidentified
Maximum Onboard Memory	256KB (location of memory is unidentified)

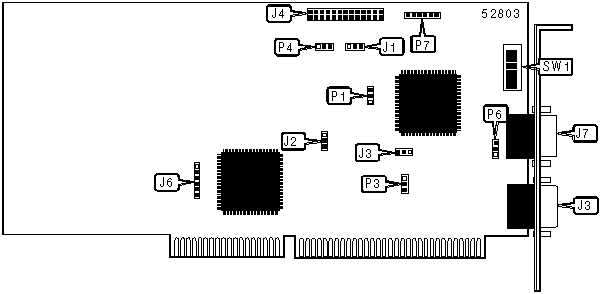

CONNECTIONS
Purpose	Location	Purpose	Location
VGA feature connector	J4	Digital video port	J3
Light Pen connector	J6	RCA connector	P7
Analog video port	J7

FEATURE OSCILLATOR SETTING
Setting		P4
»	On-board oscillator	Pins 2 & 3 closed
	Add-on oscillator	Pins 1 & 2 closed

VEGA VGA ADDRESS CONFIGURATION
Setting		P1
»	3XX	Pins 1 & 2 closed
	2XX	Pins 2 & 3 closed

BUS SIZE SETTING
Size	P3
8-bit	Pins 1 & 2 closed
16-bit	Pins 2 & 3 closed

MONITOR SETTING
Setting		P6
»	Color	Pins 1 & 2 closed
	Monochrome	Pins 2 & 3 closed

MONITOR TYPE SETTING
Setting		SW1/1	SW1/2	SW1/3
»	Automatic	Off	Off	Off
	NEC MultiSync	On	Off	Off
	Nanao 8060/9070	On	Off	Off
	Princeton Ultrasync	On	Off	Off
	Sony Multiscan	Off	On	Off
	Mitsubishi	Off	On	Off
	Taxan	Off	On	Off
	Thomson	Off	On	Off
	NEC MultiSync Plus	On	On	Off
	MultiSync XL	On	On	Off
	IBS PS/2 analog display	Off	Off	On
	IBM color display	On	Off	On
	IBM Enhanced color display	Off	On	On
	IBM Monochrome display	On	On	On

DISPLAY ADAPTER SETTING
Setting		SW1/4
»	VEGA VGA is primary	Off
	VEGA VGA is secondary	On

VEGA VGA AUTOSWITCHING CONFIGURATION
Setting		SW1/5
»	Enabled	On
	Disabled	Off

SYSTEM BOOT MODE
Setting		SW1/6
»	VGA	Off
	CGA	On

FACTORY CONFIGURED
Location	Position
J1	Pins 1 & 2 closed
J2	Pins 2 & 3 closed
J3	Pins 2 & 3 closed
