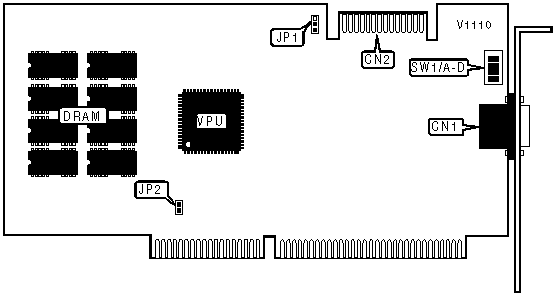

WA-V77 video card Settings and Configuration

Category	Video
Video Types Supported	XVGA
Video Processor	Unidentified
Highest Resolution Supported	1024 x 768
Data Bus Type	16-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	512KB

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA feature connector	CN2

FEATURE CONNECTOR CLOCK INPUT
Setting		JP1
»	Enabled	Pins 1 & 2 closed
	Disabled	Pins 2 & 3 closed

BIOS SIZE
Setting		JP2
»	Automatic detect	Closed
	Force to 8-bit	Open

MONITOR SELECT
Setting		SW1/A
»	VGA fixed frequency	Off
	Multi frequency	On

VGA MODE
Setting		SW1/B
»	PS/2	On
	PC/AT	Off

BIOS SIZE
Setting		SW1/D
»	Automatic detect	On
	Force to 8-bit	Off

DRAM CONFIGURATION
Size	Bank 0	Bank 1
256KB	(8) 64KB x 4	None
512KB	(8) 64KB x 4	(8) 64KB x 4
Note: Relative position of banks unidentified.

FACTORY CONFIGURED SETTINGS
Switch	Position
SW1/C	Off
