VGA 9000 video card Settings and Configuration
UNIDENTIFIED

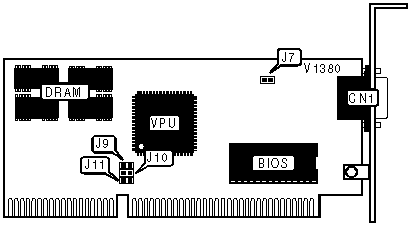

VGA 9000
Category | Video |
Video Types Supported | XVGA |
Video Processor | Trident |
Highest Resolution Supported | 1024x768 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 512KB |
CONNECTIONS | |
Purpose | Location |
15-pin analog video port | CN1 |
SCAN RATE | ||
Setting | J7 | |
| » | Normal | Open |
High | Closed | |
Note: High scan rates are only available in 512KB configurations. | ||
BIOS AUTODETECT (OPTIONAL) | ||
Setting | J8 | |
| » | Enabled | Closed |
Disabled | Open | |
Note: The location of J8 is unidentified. | ||
BUS TYPE SELECTION | ||||
Type | J9 | J10 | J11 | |
| » | 16-bit | Open | Open | Open |
8-bit | Closed | Closed | Closed | |
DRAM CONFIGURATION |
Note: The VGA 9000 comes in 256KB and 512KB versions. The size and orientation of memory banks is unidentified. |
