VGA-2280A video card Settings and Configuration
UNIDENTIFIED
VGA-2280A
Category | Video |
Video Types Supported | XVGA |
Video Processor | Acer, Inc. |
Highest Resolution Supported | 1024 x 768 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 512KB |

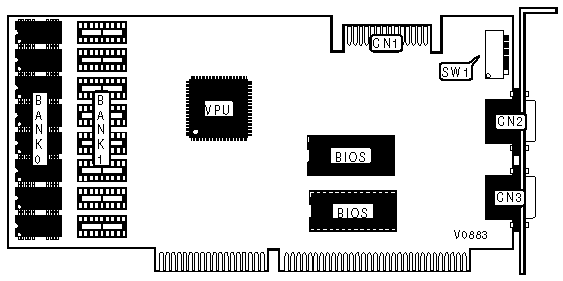

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
VESA feature connector | CN1 | 9-pin digital video port | CN3 |
15-pin analog video port | CN2 | ||
VIDEO MODE | ||
Setting | SW1/1 | |
| » | VGA | On |
EGA/MDA | Off | |
MONITOR TYPE | ||
Setting | SW1/2 | |
| » | Analog monitors | On |
TTL monitors | Off | |
NON-VGA DISPLAY MODES | ||||||
Setting | SW1/1 | SW1/2 | SW1/3 | SW1/4 | SW1/5 | SW1/6 |
EGA | Off | Off | Off | On | On | Off |
MDA 80 x 25 | Off | Off | Off | Off | On | Off |
CGA 40 x 25 | Off | Off | On | On | On | Off |
CGA 80 x 25 | Off | Off | On | Off | Off | On |
DRAM CONFIGURATION | |||
Size | Bank 0 | Bank 1 | |
| » | 256KB | (8) 64K x 4 | None |
512KB | (8) 64K x 4 | (8) 64K x 4 | |
