VC 415D video card Settings and Configuration
UNIDENTIFIED
VC 415D
Category | Video |
Video Types Supported | XVGA |
Video Processor | Unidentified |
Highest Resolution Supported | 1280 x 768 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 1MB |

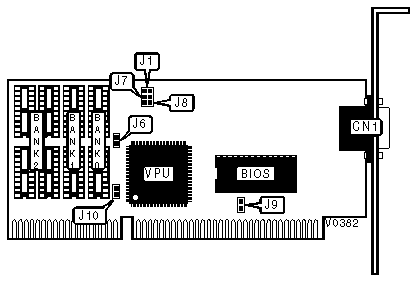

CONNECTIONS | |
Purpose | Location |
15-pin analog video port | CN1 |
WAIT STATE SELECTION | |
0 Wait State | J1 |
Enabled | Open |
Disabled | Closed |
BUS WIDTH SELECTION | ||||
Width | J6 | J9 | J10 | |
| » | 16-bit | Open | Open | Closed |
8-bit | Closed | Closed | Open | |
REFRESH RATE CONFIGURATION | ||
Configuration | J7 | |
| » | 48.7 refresh rate enabled | Open |
Default refresh rate enabled | Closed | |
8-BIT/16-BIT BIOS CONFIGURATION | ||
Configuration | J8 | |
| » | 16-bit BIOS operation enabled | Open |
8-bit BIOS operation enabled | Closed | |
VIDEO MEMORY CONFIGURATION | |||
Size | Bank 0 | Bank 1 | Bank 2 |
256KB | (2) 44256 | None | None |
512KB | (2) 44256 | (2) 44256 | None |
1024KB | (2) 44256 | (2) 44256 | (4) 44256 |
