TVGA9000C video card Settings and Configuration
UNIDENTIFIED
TVGA9000C
Category | Video |
Video Types Supported | XVGA |
Video Processor | 9000C |
Highest Resolution Supported | 1024 x 768 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 512KB |

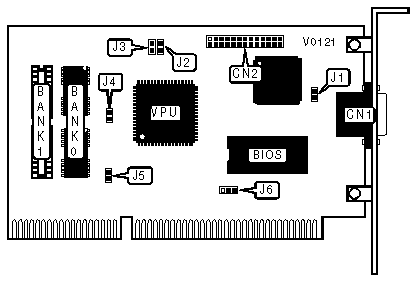

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | VGA feature connector | CN2 |
SCAN RATE SELECTION | ||
Rate | J2 | |
| » | Default scan rate | Closed |
48.7Khz | Open | |
BUS WIDTH AUTODETECT CONFIGURATION | ||
Setting | J3 | |
| » | Enabled | Open |
Disabled | Closed | |
BUS SIZE SELECTION | ||||
BUS | J4 | J5 | J6 | |
| » | 16-bit | Open | Closed | Open |
8-bit | Closed | Open | Closed | |
DRAM CONFIGURATION | |||
Size | Bank 0 | Bank 1 | J1 |
256KB | (2) 41256 | None | Closed |
512KB | (2) 41256 | (2) 41256 | Open |
