TRIDENT 9000 video card Settings and Configuration






UNIDENTIFIED

TRIDENT 9000

Category

Video

Video Types Supported

XVGA

Video Processor

TVGA9000

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

256KB or 512KB

CONNECTIONS

Purpose

Location

15-pin analog video port

CN1

SCAN RATE SETTING

Setting

JP7

>=48.7KHz

Open



<48.7KHz

Closed

Note: JP7 is functional for the 512KB memory configuration only.

AUTODETECT BUS WIDTH

Setting

JP8

Enabled

Open



Disabled

Closed

BUS SELECT

Setting

JP9/A

JP9/B

JP9/C

16-bit

Open

Open

Open



8-bit

Closed

Closed

Closed

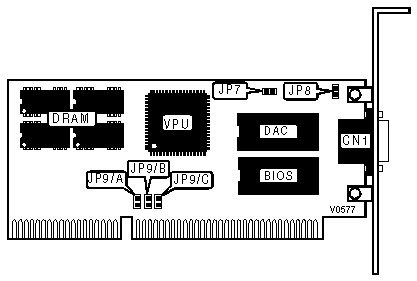

VIDEO MEMORY CONFIGURATION

Note: The board comes in two configurations one with 256KB (4) 64K X 8 or with 512KB (4) 256K X 4
