KT VGA MX (512KB) video card Settings and Configuration






UNIDENTIFIED

KT VGA MX (512KB)

Category

Video

Video Types Supported

XVGA

Video Processor

MX86000

Highest Resolution Supported

1024 x 768

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

512KB

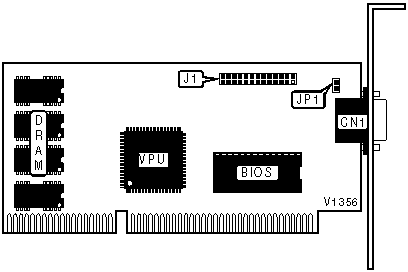

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA feature connector

J1

VGA DISPLAY MODE CONFIGURATION

Mode

JP1

Color

Open

Monochrome

Closed
