EMK-16V VGA video card Settings and Configuration

Category	Video
Video Types Supported	XVGA
Video Processor	Unidentified
Highest Resolution Supported	1056 x 400
Data Bus Type	16 bit ISA
Memory Type	DRAM
Maximum Onboard Memory	512KB

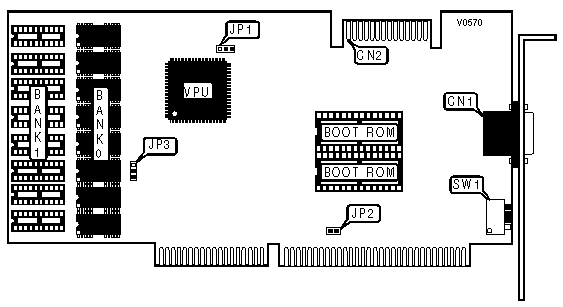

CONNECTIONS
Purpose	Location	Purpose	Location
15-pin analog video port	CN1	VGA Feature Connector	CN2

FEATURE CONNECTOR CLOCK
Setting		JP1
»	Enable 800 X 600 and 132 Text Mode	Pins 1 & 2 closed
	Disable 800 X 600 & Enable Feature Connector Clock	Pins 2 & 3 closed

16 BIT AUTODETECT
Setting		JP2
»	Enable 16 bit VGA Autodetect Circuit	Open
	Disable 16 bit VGA Autodetect Circuit	Closed

DRAM JUMPER CONFIGURATION
Setting	JP3
256KB	Pins 2 & 3 closed
512KB	Pins 1 & 2 closed

DRAM CONFIGURATION
Setting	Bank 0	Bank 1
256KB	(8) 32K x 8	NONE
512KB	(8) 32K x 8	(8) 32K x 8

MONITOR TYPE
Setting	SW1/1
Multi-frequency Timing	On
PS/2 compatible fixed frequency	Off

VGA MODE SWITCHING
Setting		SW1/2
»	PS/2 all available VGA modes	On
	PC/AT color modes for color & monochrome modes on monochrome monitors	Off

FACTORY CONFIGURED SETTINGS
Switch	Setting
SW1/3	Off

BUS SIZE AUTODETECT
Setting		SW1/4
»	Enable	On
	Disable (Force 8 bit BIOS)	Off
