CL-GD5420A/CL-GD5422A video card Settings and Configuration






UNIDENTIFIED

CL-GD5420A/CL-GD5422A

Category

Video

Video Types Supported

XVGA

Video Processor

Cirrus Logic, Inc.

Highest Resolution Supported

1280 x 1024

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

1MB

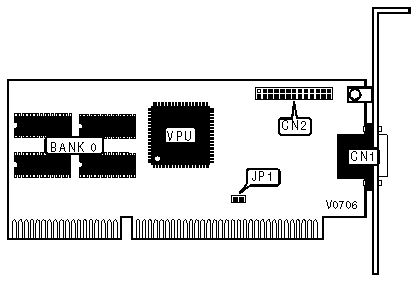

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VESA Feature connector

CN2

ZERO WAIT STATE

Setting

JP1

Disabled

Open

Enabled

Closed
