CHEETAH XG video card Settings and Configuration
UNIDENTIFIED
CHEETAH XG
Category | Video |
Video Types Supported | XVGA |
Video Processor | Cirrus Logic, Inc. |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 2MB |
CONNECTIONS | |||
Purpose | Location | Purpose | Location |

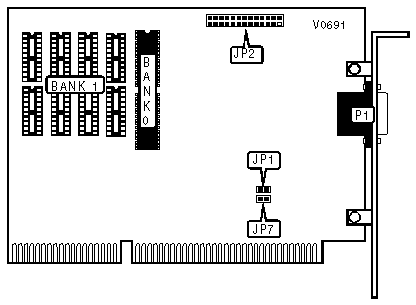

15-pin analog video port | P1 | VESA Feature connector | JP2 |
IRQ9 | |
Setting | JP1 |
» Disabled | Open |
Enabled | Closed |
ZERO WAIT STATE | |
Setting | JP7 |
» Enabled | Closed |
Disabled | Open |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
» 1MB | (2) 512K x 8 | None |
2MB | (2) 512K x 8 | (8) 256K x 4 |
