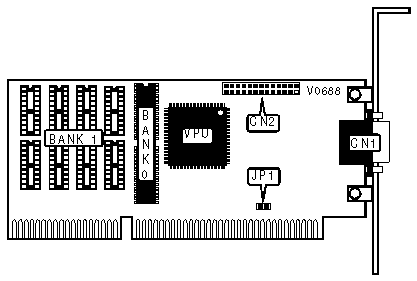

AVGA3B video card Settings and Configuration
UNIDENTIFIED
AVGA3B
Category | Video |
Video Types Supported | XVGA |
Video Processor | Cirrus Logic, Inc. |
Highest Resolution Supported | 1280 x 1024 |
Data Bus Type | 16-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 2MB |
CONNECTIONS | |||
Purpose | Location | Purpose | Location |
15-pin analog video port | CN1 | VESA Feature connector | CN2 |
ZERO WAIT STATE | |
Setting | JP1 |
Enabled | Closed |
Disabled | Open |
DRAM CONFIGURATION | ||
Size | Bank 0 | Bank 1 |
» 1MB | (2) 512K x 8 | None |
2MB | (2) 512K x 8 | (8) 256K x 4 |
