VGP-II video card Settings and Configuration

Category	Video
Video Types Supported	VGA
Video Processor	Cirrus Logic, Inc.
Highest Resolution Supported	800 x 600
Data Bus Type	8-bit ISA
Memory Type	DRAM
Maximum Onboard Memory	256KB

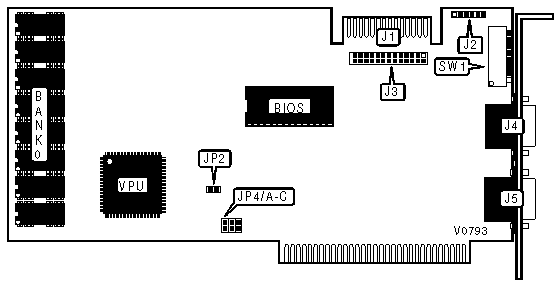

CONNECTIONS
Purpose	Location	Purpose	Location
VESA feature connector	J1	9-pin digital video port	J4
6-pin light pen connector	J2	15-pin analog video port	J5
26-pin parallel port - internal	J3

PARALLEL PORT CONFIGURATION
» LPT/Address		JP2	JP4/jumper A	JP4/jumper B	JP4/jumper C
	» LPT1/3BCh	Pins 1 & 2 closed	Open	Closed	Open
»	LPT2/378h	Pins 2 & 3 closed	Open	Open	Closed
»	LPT3/278h	Pins 1 & 2 closed	Open	Open	Closed
»	Disabled	Pins 1 & 2 closed	Closed	Open	Open

MONITOR TYPE
» Type		SW1/1	SW1/2	SW1/3	SW1/4
»	PS/2	Off	On	On	Off
»	Monochrome	On	On	On	On
»	Color	Off	On	On	On
»	Enhanced color	On	Off	On	On
»	TTL multi-frequency	Off	Off	On	On
	Analog multi-frequency	Off	On	On	Off

PRIMARY/SECONDARY ADAPTER
» Setting		SW1/5
»	VGP-II is the primary display card	On
»	VGP-II is the secondary display card	Off

DISPLAY MODE
» Mode		SW1/6	SW1/7	SW1/8
»	Automatic	On	On	On
»	CGA only	Off	On	On
»	EGA only	Off	Off	On
»	MGA only	On	Off	On
»	VGA only	On	On	Off
»	VGA protected	Off	On	Off
