VGA-001 video card Settings and Configuration






UNIDENTIFIED

VGA-001

Category

Video

Video Types Supported

VGA

Video Processor

Unidentified

Highest Resolution Supported

800 x 600

Data Bus Type

16-bit ISA

Memory Type

DRAM

Maximum Onboard Memory

256KB

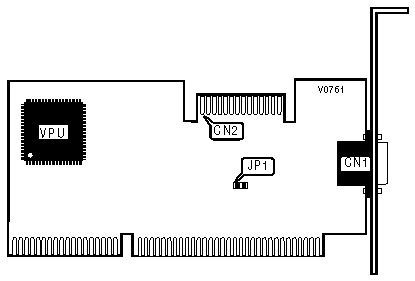

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

CN1

VGA feature connector

CN2

ZERO WAIT STATE SELECT

Setting

JP1

»

Disabled

Open



Enabled

Closed
