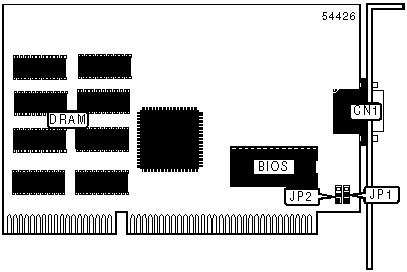

1580 REV.I video card Settings and Configuration

Card Type	Video card
Video Chip Set	Unidentified
Maximum Video Memory	1MB DRAM
Video Types Supported	VGA
Highest Resolution Supported	Unidentified
Data Bus	16-bit ISA

CONNECTIONS
Function	Label
15-pin video analog connector	CN1

DISPLAY CONFIGURATION
Display		JP1
»	SVGA	Pins 2 & 3 closed
	VESA	Pins 1 & 2 closed

VIDEO INTERLACE CONFIGURATION
Function	JP2
Interlace enabled	Pins 1 & 2 closed
Interlace disabled	Pins 2 & 3 closed
