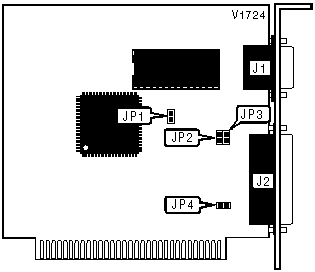

3088A2 MGP video card Settings and Configuration






UNIDENTIFIED

3088A2 MGP

Category

Video/Printer

Video Types Supported

Monochrome

Video Processor

Unidentified

Highest Resolution Supported

720 x 348

Data Bus Type

8-bit ISA

Memory Type

N/A

Maximum Onboard Memory

64KB (Location unidentified)

CONNECTIONS

Purpose

Location

Purpose

Location

15-pin analog video port

J1

25-pin parallel port

J2

ROM SIZE

Size

JP1

32KB (2732)

Open

64KB (2764)

Closed

PARALLEL PORT

Setting

JP2

JP3

LPT1 (3BCh)

Open

Open

LPT2 (378h)

Closed

Open

LPT3 (278h)

Open

Closed

Disabled

Closed

Closed

EXTERNAL POWER

Setting

JP4

Disabled

Open

+12V

Closed








TOP
