MONOGRAPHICS PRINTER ADAPTER video card Settings and Configuration

Card Type	Multi-I/O card
Chip Set	Unidentified
I/O Options	Parallel port, Light pen interface, Monochrome display port
Data Bus	8-bit ISA
Card Size	Half-length, full-height

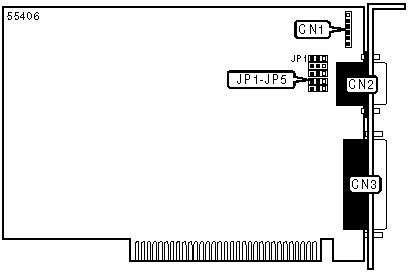

CONNECTIONS
Function	Label	Function	Label
Light pen interface	CN1	Parallel port	CN3
Display port	CN2

USER CONFIGURABLE SETTINGS
Function		Label	Position
»	Full memory mode	JP1	Pins 2 & 3 closed
	Half memory mode	JP1	Pins 1 & 2 closed

PARALLEL PORT SELECTION
Setting	JP2	JP3	JP4	JP5
Enable	2 & 3	2 & 3	2 & 3	2 & 3
Disable	1 & 2	1 & 2	1 & 2	1 & 2
Note: Pins designated are in the closed postion.
