MGP-10/TD3088A3 video card Settings and Configuration
UNIDENTIFIED
MGP-10/TD3088A3
Category | Video |
Video Types Supported | MDA |
Video Processor | Unidentified |
Highest Resolution Supported | 720 x 348 |
Data Bus Type | 8-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | 64KB |

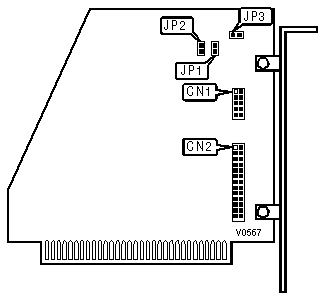

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
10-pin digital video port | CN1 | 26-pin parallel printer port | CN2 |
PARALLEL PORT SELECT | ||
Setting | JP1 | JP2 |
LPT1 | Open | Open |
LPT2 | Closed | Open |
LPT3 | Open | Closed |
Disabled | Closed | Closed |
CHIP SELECT | |
Setting | JP3 |
Enable | Open |
Disable | Closed |
