DA-2338 video card Settings and Configuration
UNIDENTIFIED
DA-2338
Category | Video |
Video Types Supported | CGA |
Video Processor | Unidentified |
Highest Resolution Supported | 720 x 348 (Monochrome) |
Data Bus Type | 8-bit ISA |
Memory Type | DRAM |
Maximum Onboard Memory | Unidentified |

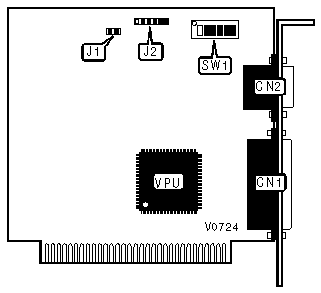

CONNECTIONS | |||
Purpose | Location | Purpose | Location |
Parallel port | CN1 | Composite video connector - internal | J1 |
15-pin analog video port | CN2 | Light pen connector | J2 |
MONOCHROME VIDEO | ||||
Setting | SW1/1 | SW1/2 | SW1/5 | SW1/6 |
» Monochrome (Hercules) | On | On | On | On |
Monochrome (CGA) | On | On | Off | On |
Color (CGA) | Off | Off | Off | On |
DUAL DISPLAY MODE | ||||
Setting | SW1/1 | SW1/2 | SW1/5 | SW1/6 |
Dual display (Hercules) | Off | On | On | On |
Dual display (CGA) | Off | On | Off | On |
COMPOSITE VIDEO | ||||
Setting | SW1/1 | SW1/2 | SW1/5 | SW1/6 |
Color | Off | Off | Off | On |
Monochrome | Off | Off | Off | Off |
PARALLEL PORT | ||
Setting | SW1/3 | SW1/4 |
» LPT1 | Off | On |
LPT2 | On | On |
MGP | On | Off |
Disabled | Off | Off |
